OBJECTIVES

·       To define capacitance

·       To determine how the capacitance of conducting parallel plates is related to the separation distance between the plates and the surface area of the plates

·       To determine the permitivvity constant



INTRODUCTION



Capacitors are widely used in a variety of electric circuits to provide extra energy or help keep energy levels at a constant value.  As an example, a home cooling (AC) unit will have a capacitor that stores charge (energy).  When the system is started, the capacitor can release the stored energy to assist the unit in starting the compressor necessary to cool the home.  Electronics with flashing lights use a capacitor in a timing or RC circuit.

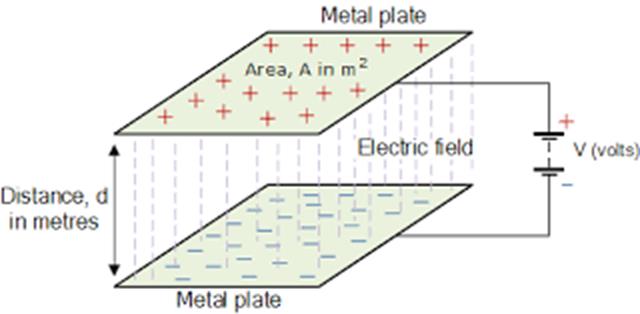

The classical design of a capacitor, which you will use in this lab, is two parallel conducting plates, separated by an insulator as shown below.



filler image

From  https://goo.gl/images/Cb7OxV



Charges of opposite sign are stored on the two plates, establishing an electric field between the plates.  The capacitance can be defined as a ratio of charge to voltage, or

filler image

where C is the capacitance, in Farads, Q the charge on one plate in Coulombs (each plate has equal magnitude charge), and V is the separation Voltage.



However, it is a misnomer to think that the capacitance of a capacitor is defined by the amount of charge and voltage.  Capacitance is defined by the geometry of the capacitor design, or particularly on the cross sectional area of the plates and the separation distance of the plates (and also the material, if any, placed between the plates).



In this lab, you will use a pHet simulation to derive the relationship for capacitance, as a function of both separation distance and the area of the plates.



PROCEDURE



PART 1



In this part of the lab, you will determine the relationship between capacitance and plate area.  Using the simulation, fix the voltage at 1.5 V (the default), the plate Area at 100 mm2 (default), and the separation distance at 5.0 mm.  Select the Capacitance meter, and measure the capacitance.  Repeat for the five values of plate area shown below.



Plate Area (mm2)

Capacitance (F)

100



150



200



300



400





Graph your data in EXCEL, Google Sheets, or on a graphing calculator.



1.                  What is the mathematical function suggested by the graph (linear, quadratic/parabola, inverse/rational)?  If you are unclear as to the shapes of these graphs, visit http://www.mtsac.edu/marc/worksheet/general_topics/15common_graph_shapes.pdf


2.                  Write a corresponding equation based on your answer, using C as the symbol for Capacitance, A as the symbol for plate Area, and k as some arbitrary constant.  For example, if you felt the relationship was linear, you would write filler image.  If you felt the relationship was quadratic, you would write filler image.  If you felt this is an inverse relationship, you would write filler image.




PART 2



Now the relationship between Capacitance and plate separation will be investigated.  Keep the plate area at 400 mm2 and the battery voltage at 1.5 V.  Complete the table below for the indicated plate separations



Plate separation (mm)

Capacitance (F)

5



6



7



8



9



10







Graph your data in EXCEL, Google Sheets, or on a graphing calculator.



1.                  What is the mathematical function suggested by the graph (linear, quadratic/parabola, inverse/rational)?



2.                  Write a corresponding equation based on your answer, using C as the symbol for Capacitance, d as the symbol for plate separation, and k as some arbitrary constant.  For example, if you felt the relationship was linear, you would write filler image and so forth.









CONCLUSIONS



1.                  Write an equation for Capacitance (C) as a function of Area (A), separation distance (d), and a constant (k) by combining your two equations.  For example, if you felt that both relationships were linear ( filler image, then you would write an equation for capacitance that shows capacitance varying linearly with both A and d, or filler image.  Write a brief statement justifying your decision.








2.                  Find the equation for Capacitance as a function of Area and distance from a reputable source (text, appropriate website), and copy the equation and source below.  If your equation above does not match, explain why your equation in #1 was incorrect.



3.                  You now know that the constant k we used throughout the lab is the permittivity of free space, filler image.  Research what this constant represents and report your findings below.








4.                  Choose any one set of data from either table (a known value of C, A, and d) and calculate filler image.    Show your work below.









5.              If your value in 5 differs from the actual value of filler image (8.85 x 1012), explain why you think this difference exists.
